I was tasked with creating a base repertory light plot for the The Philipstown Depot Theatre. I drafted a light plot, produced a channel hookup, magic sheet, and Element II console file for future designers to use when they design at the Depot. I then led the cleaning of the grid and hanging of the plot over the span of four days. I also cleaned up the inventory and noted down the number of lights and accessories.
Shown below is a few pieces of my paperwork as well as pictures of the grid before and after rehanging.
Light Plot
Channel Hookup & Magic Sheet
Before Rehang Grid Pictures

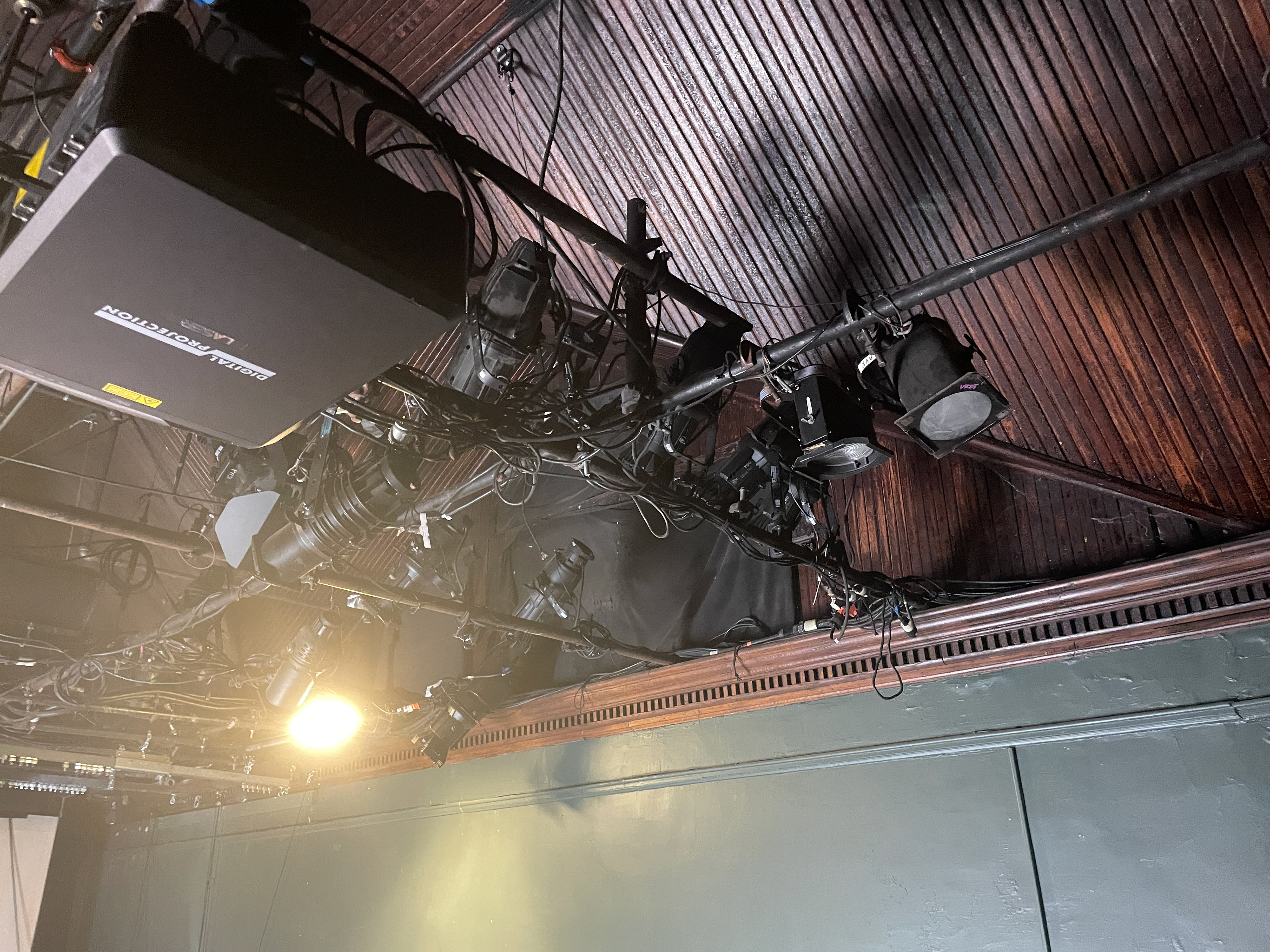

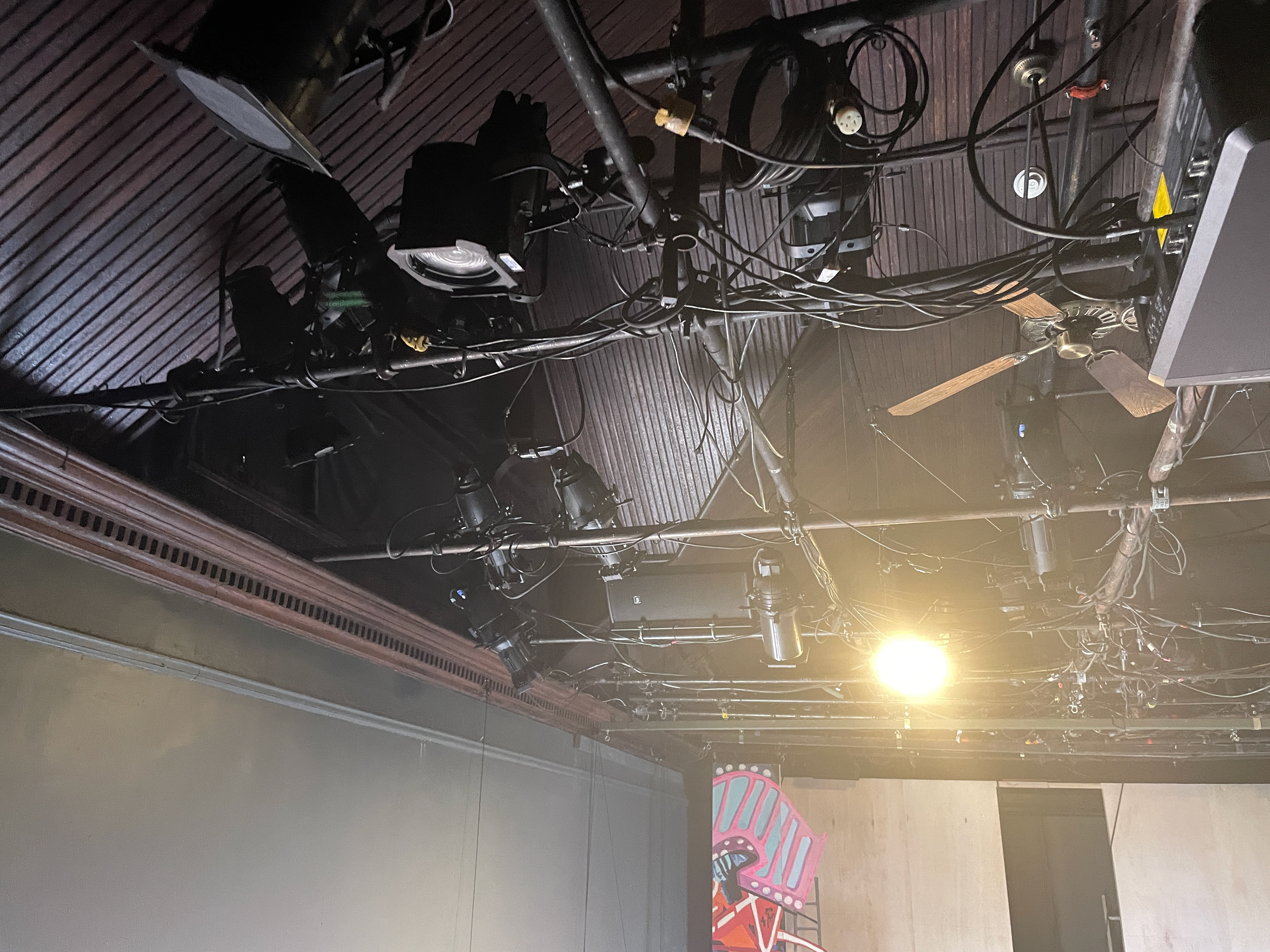

FOH Pipes
FOH Pipes

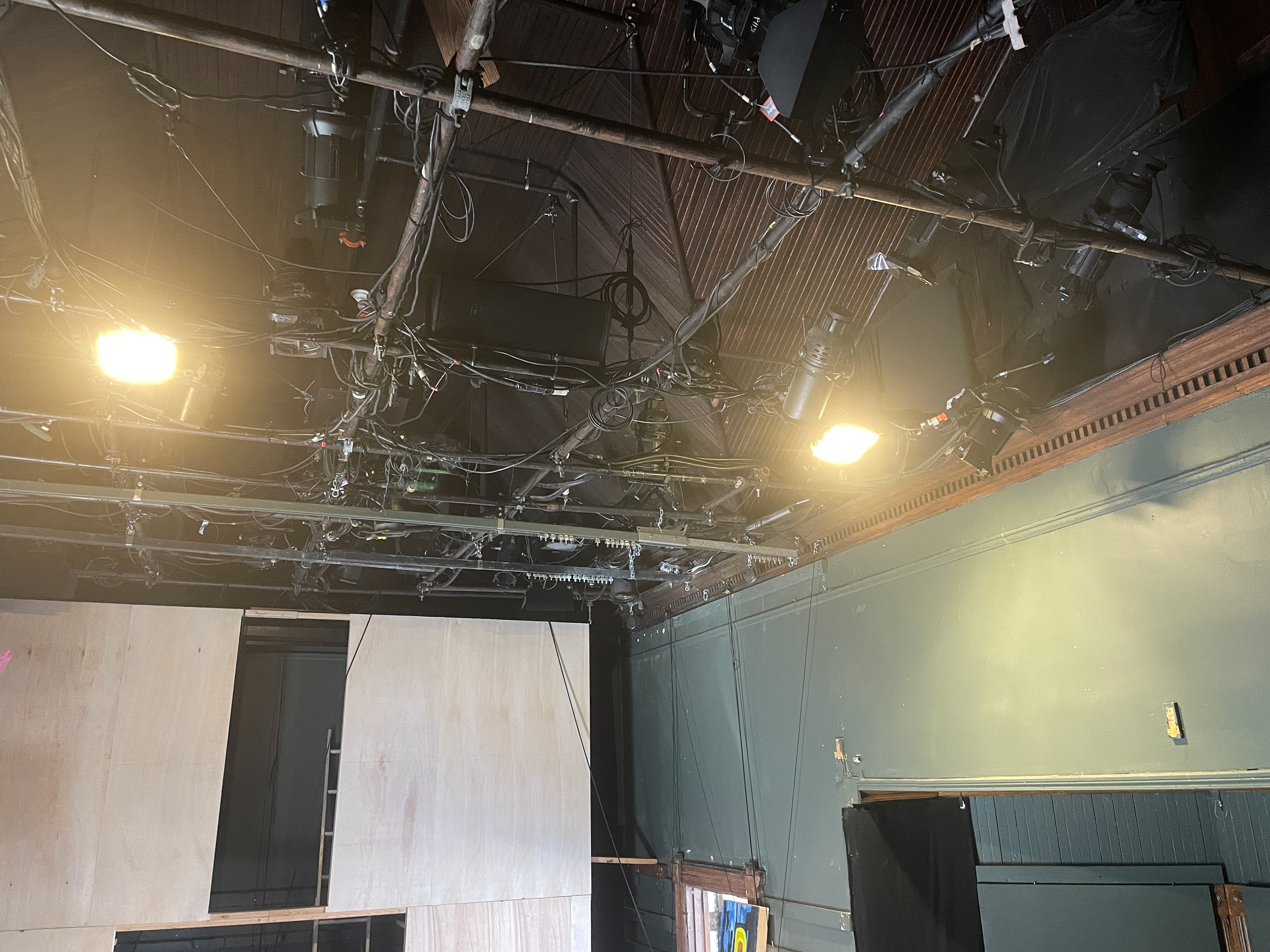

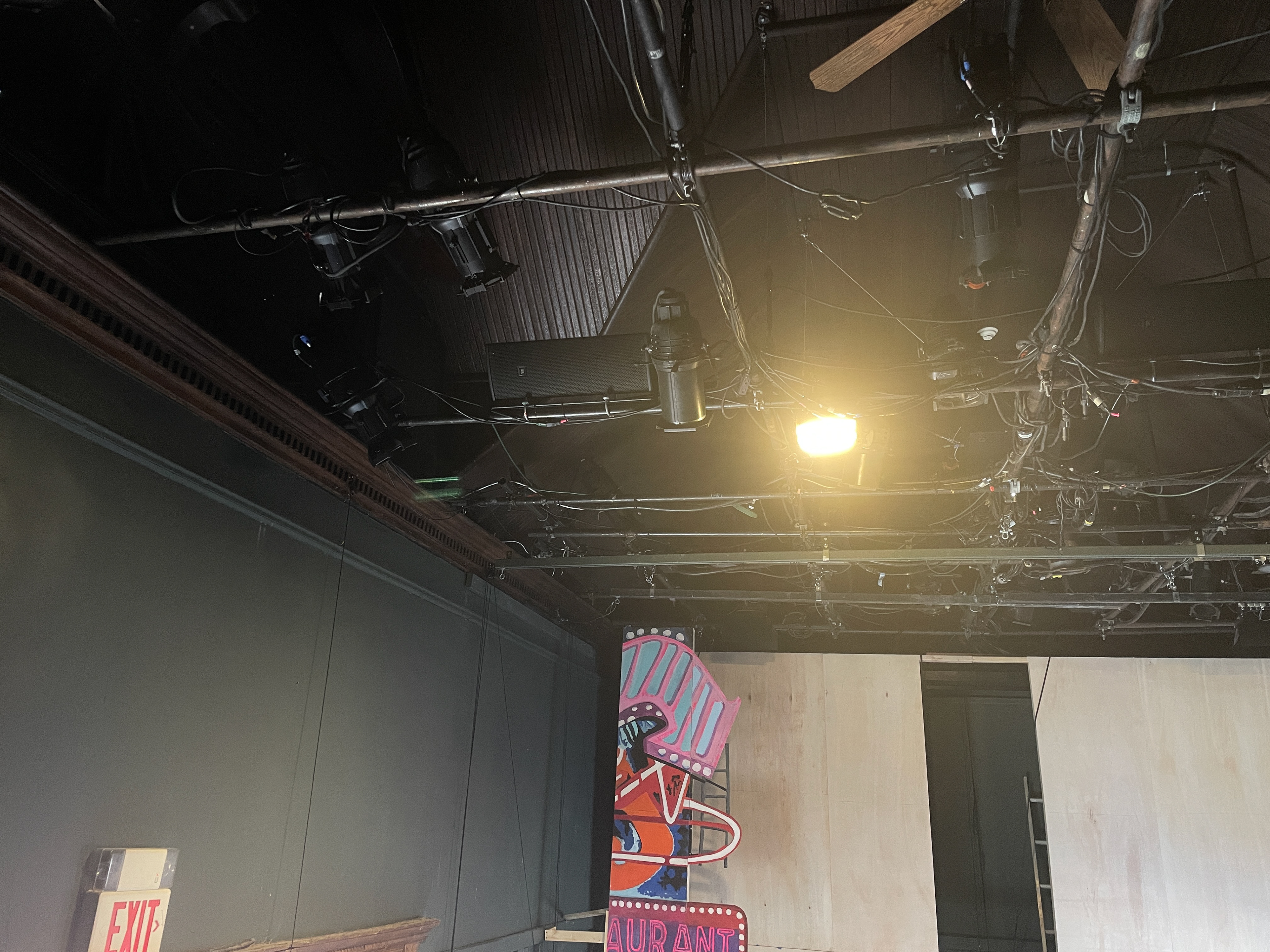

Over Stage Pipes
Over Stage Pipes
After Rehang Grid Pictures

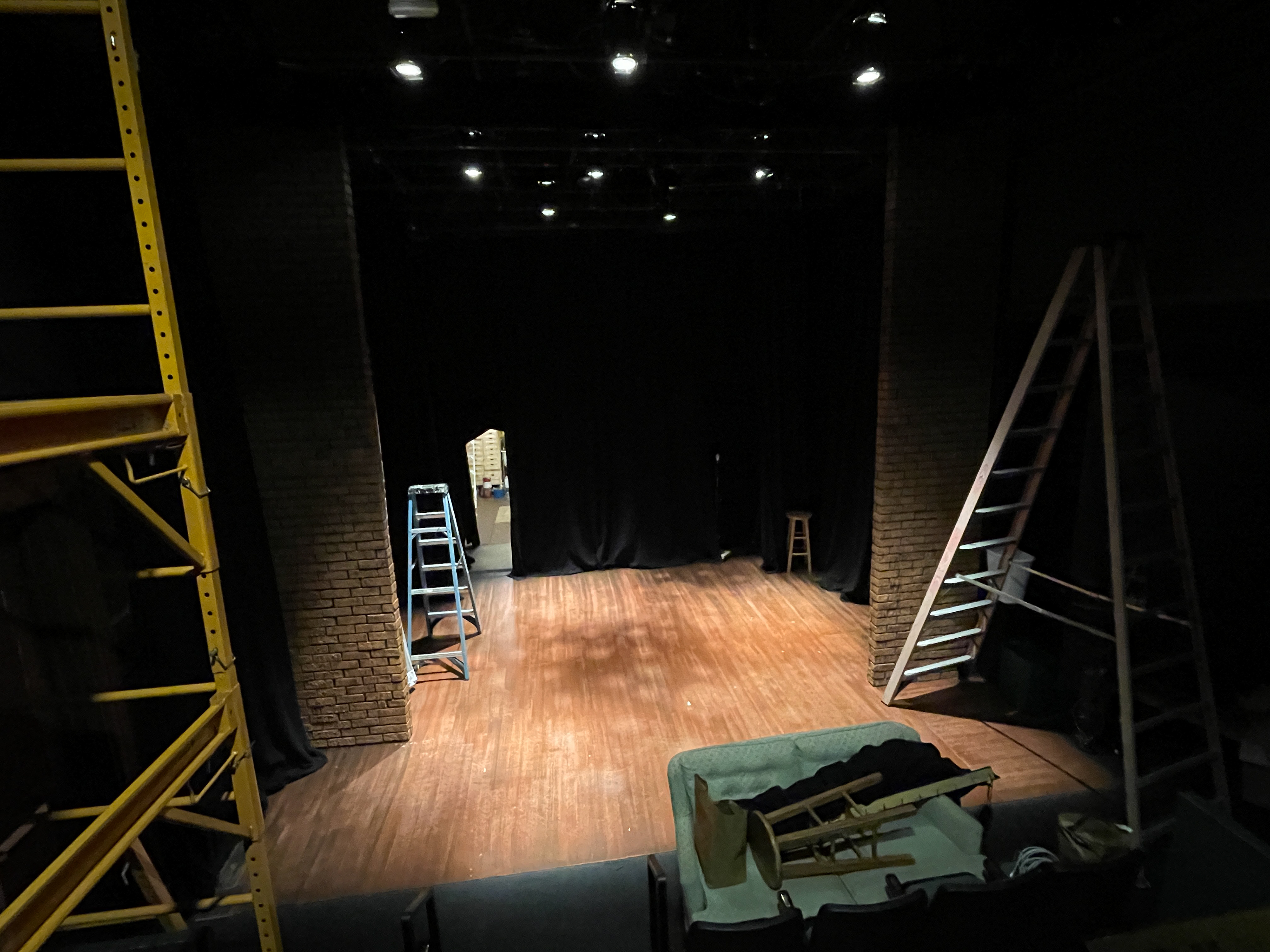

Fully Focused Plot!

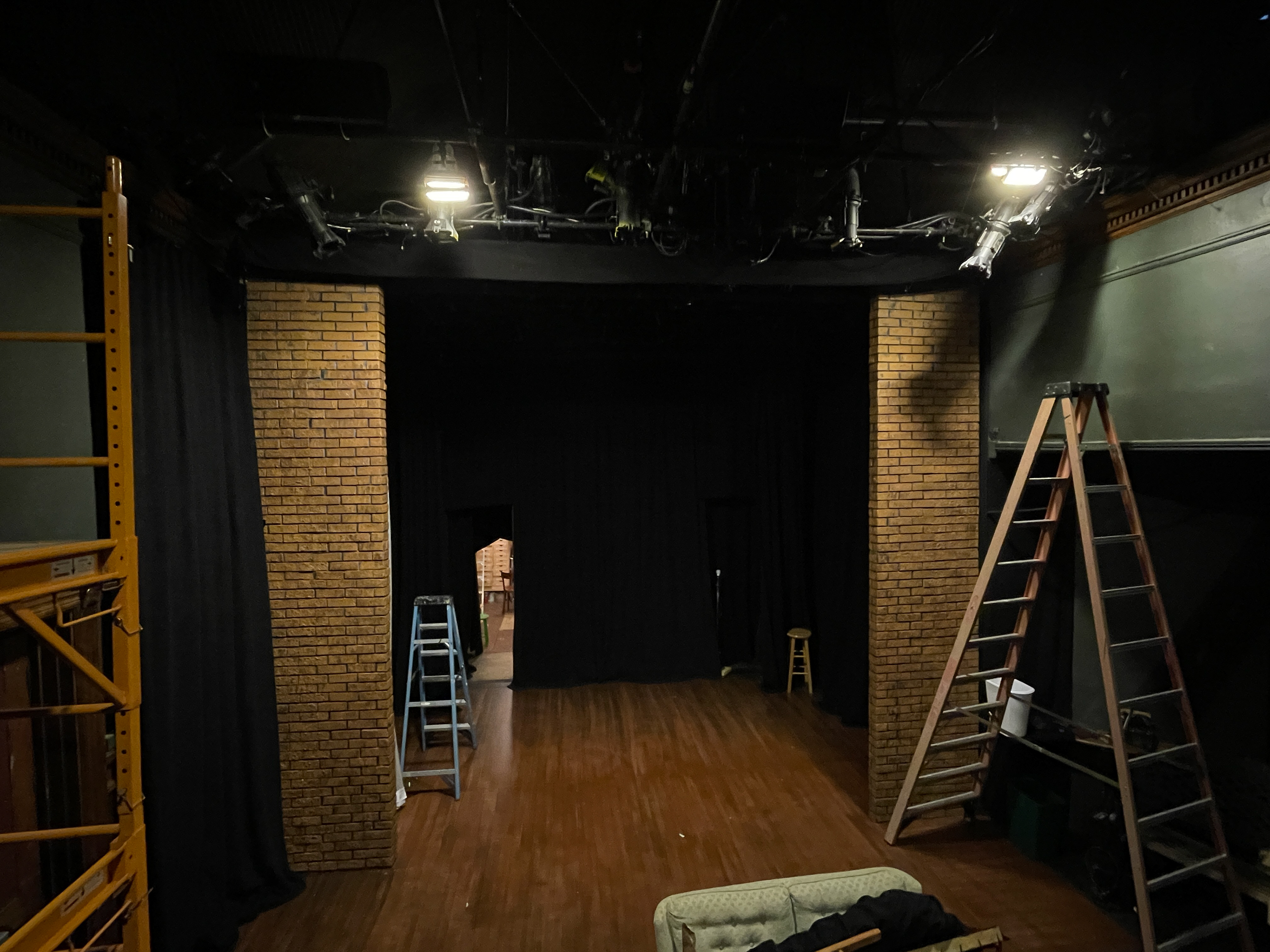

Plot in Work Lights

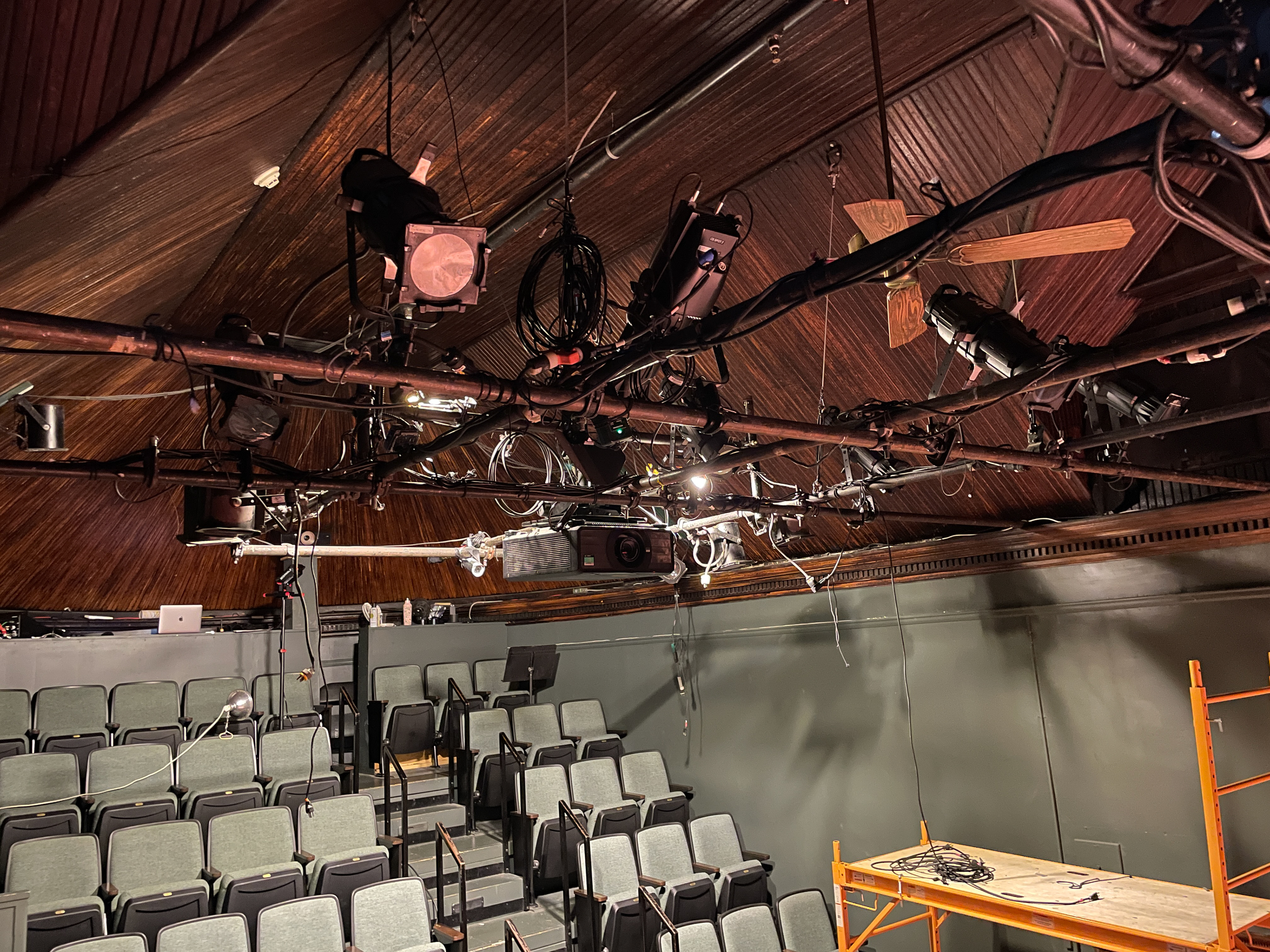

Cleaned FOH Pipes

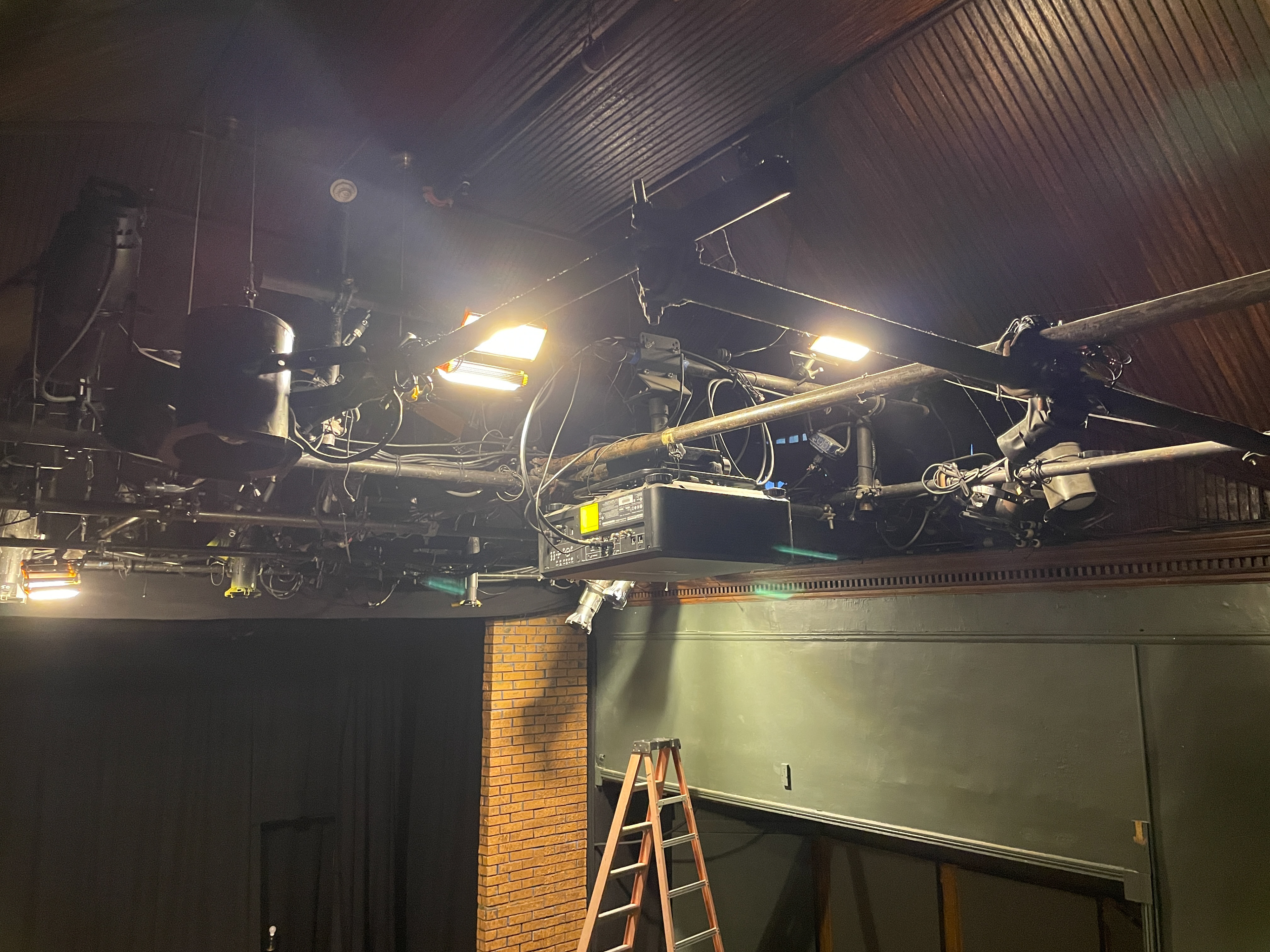

FOH Pipes
